High Accuracy Semi Automatic Rigid Box Making Machine For Shoe Storage

Ask Lasest Price
Brand Name :	Longxingsheng
Model Number :	LS-F6
Certification :	CE ISO
Price :	$10,500.00/sets >=1 sets
Supply Ability :	30 Set/Sets per Month

Add to Cart

Product Details
Company Profile

High Accuracy Semi Automatic Rigid Box Making Machine For Shoe Storage

LS-F6 Shoe Box Making Machine

About LS-F6

LS-F6 Rigid box making machine is applied for wrapping the glued paper in the pasted box. It can finished side wrapping, edge folding (≤50 mm), tucking in and air pressing at one time.

It has 4 modes:Fold in on one side, fold in on opposite sides, fold on all four sides at the same time, first on opposite sides and then on one side. It has applied Pneumatic and Compressor air to driving the machine running.

This machine is setting by manual, which will cost around 15 minutes. It is an ideal equipment for customer which has different.quantity orders. Especially the customer seeking for higher quality products.

It has two edge folding model and four types tucking in models. The shortest time of one sbox finished is 1.7s. The max speed can reach 30 pcs/min to certain boxes.And it setting time only needs about 15mins

High Accuracy Semi Automatic Rigid Box Making Machine For Shoe Storage

Required mold when change size

Plastic mold

Durable and expensive

Wooden mold

Easy made and cheaper

Slant side box mold configurations

Customization

Working process

1. Box positioning on glued paper

2. Long side wrapping

3. Edge folding

4. Short side wrapping

5. Tucking in

6. Air pressing

Box range of LS-F6

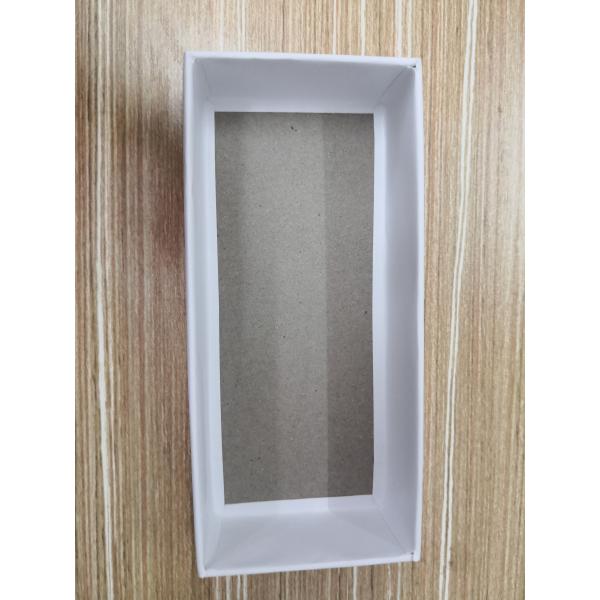

Normal rigid box

Tucking into bottom

Max wrapping height is 65mm

65-80mm wrapping height require modified

Slant sides boxes

Require modified mold, tucking in blade and air pressing board. Shortest height side require ≥ 10mm

Long edge folding

Require modification when the edge length at 50-100mm.

Max edge folding length is 100mm

Small box

Require customization

Min box size is 50*50*15mm

Opposite edge folding

Require customization

Book-type box require this type folding way

Customer Photos

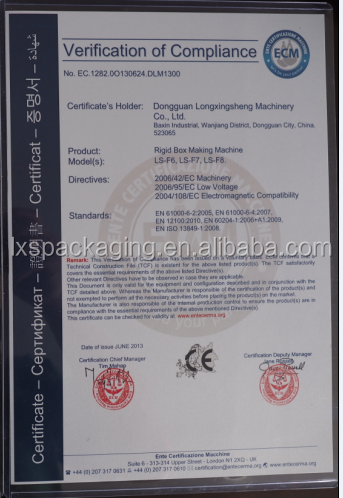

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* One year overseas warranty.

Teamwork

Packing & Delivery

Packaging
Size	1450(L) * 1100 (W) * 2200 (D)
Weight	1.2 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
