Multi Function Box Hardcover Making Machine 20-36pcs/Min 2121kg

Ask Lasest Price
Brand Name :	Longxingsheng
Model Number :	LS-450plus
Certification :	CE, ISO9001
Price :
Payment Terms :	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :	14 sets/month
Delivery Time :	7-16 work days

Add to Cart

Product Details
Company Profile

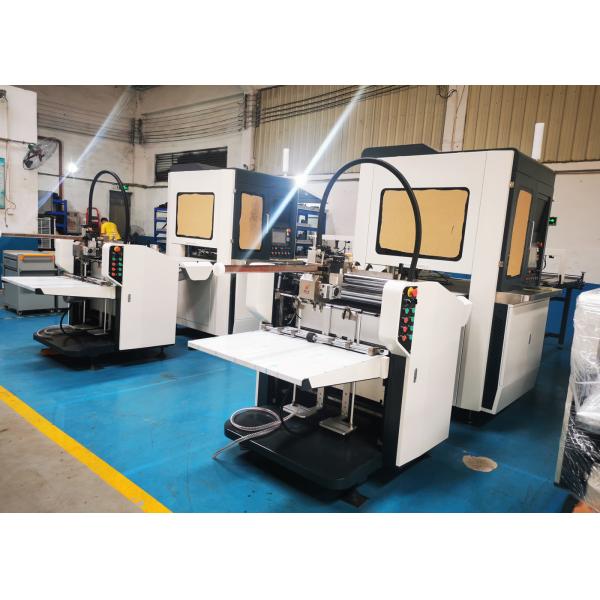

Multi Function Box Hardcover Making Machine 20-36pcs/Min 2121kg

Box & Hardcover Making Machine With High Speed And Easy Operation

Introduction:
This LS-450plus is a multi-function packaging machine. It is used for rigid box, book cover, hard cover making. Which can do paper gluing and positioning, positioning means paste the inner box or cardboard on the glued paper, which is high accuracy and save more labor cost. This machine is suitable for making high-end package products.

LS-450B Automatic Visual Positioning Machine. It is revolutionary product in rigid box making. In the past, most rigid box positioning is applied the manual spotting or the sensor box positioning. Enclosed is the rigid box making process. The box spotting is core of box making. Which combine the cardboard and paper together with help of glue.

Main features:

1. High speed: the Max speed can reach 36 pcs/min.

2. Easy running, setting time is only need 7 minutes for visal positioning part

3. No-move cameras during change sizes.

4.Two sets of ten million pixels Germany Basler cameras.

5. Dual feeding system, one button change box feeding to hardcover feeding system.

6. Anti-leaking gluing system.

Advantages:

Flexible

Can connect with four sides wrapping machine to make the hardcover

Can work with box wrapping machine to make rigid box

Can make special box, such as slant sides box (videos are available)

Can do paper lining

High speed

With 2 sets F6 or 2 sets F7 box wrapping machine, the speed of machine can make around 14000 pcs per day

Save setting time

Only need 7 minutes when change product mode

One bottom to change case to box

No stop working when change different size, because one F6 for presetting and another one can keep working

Optional function:

Glue Viscosity Device : Automatic detecting the hot melt glue thickness.
Air Operated Double Diaphragm Pump: Applied in white glue pumping.
Bottom sucker hardcover feeding device: Special design for feeding hardcover, to avoid scraping hardcover.

Multi Function Box Hardcover Making Machine 20-36pcs/Min 2121kg

Specifications of LS-450plus:

Type	LS-450plus
Paper size (Max)	L800*W600mm
Paper size (Min)	L135*W100mm
Max box size	L600W400H120mm
Min box size	L80W65H15mm
Book cover (Max)	L750*W450mm
Book cover (Min)	L150*W100mm
Paper thickness	100-350g/㎡
Paper stacking height	280mm
Motor power / voltage	7.5kw/380v, 3 phase
Heating power	8kw/380v, 3 phase
Air supply	10L/min 0.6Mpa
Working speed	15-45 sheets/min
Machine dimension	L5980W3180H2100mm
Weight of machine	2100kg

Company profile:

Dongguan Longxingjian Intelligent Equipment Co.,Ltd

We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.

We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.

Our service:

Pre-sale service:

* Inquiry and consulting support.
* Sample testing support.
* Factory visit.

* Details discussion

After-sale service:

* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine service.
