Rigid Box Visual Positioning Machine Gift Shoe Cell Phone Box

Ask Lasest Price
Brand Name :	Longxingsheng
Model Number :	LS-450B
Certification :	CE, ISO
Price :
Supply Ability :	15sets/month
Delivery Time :	7-15 work days
Payment Terms :	D/A, L/C, D/P, T/T, Western Union, MoneyGram,

Add to Cart

Product Details
Company Profile

Rigid Box Visual Positioning Machine Gift Shoe Cell Phone Box

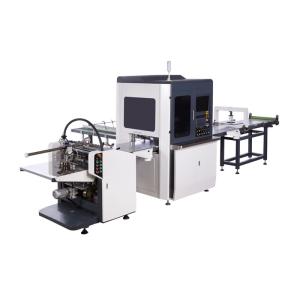

LS-450B Rigid box visual positioning machine for gift box/ shoe box/ cell phone boxes

Introduction:

LS-450B Rigid box visual positioning machine for gift box/ shoe box/ cell phone boxes is a core parts for rigid box production.

Because the visual positioning is more stable and high positioning accuracy than manual positioning, and the speed is faster. it have been widly used for making rigid box.

Nowadays, the visual positioning has been applied in the production of rigid box, gift box, shoe box, cellphone box, cosmetic box, ring box, jewelry box, tea box etc. The working model able to change by one button. The visual positioning system is able to be upgraded.

Main features:

1. High speed, fastest speed is 35 pcs/min.

2. Easy operation, the min setting time of change model is 8 minutes.

3. No-move camera when change box sizes.

4. Double Germany Basler ten million pixels cameras .

5. Anti-leaking gluing system.

6. Panasonic Servo motor feeding.

7. Storage function for the positioning part, easy to adjustment

Advantages:

High speed

With 2 sets box wrapping machines (Our LS-F6 or LS-F7), the speed of machine can make around 14000 pcs per day

High accuracy

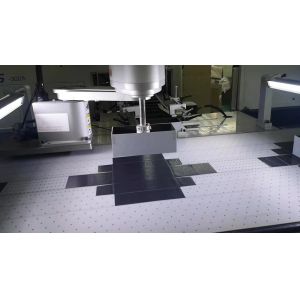

Two 10-megapixel cameras can capture tissues in a wide range to improve accuracy

Can handle different colors of cover paper, such as black, white, red, green, blue etc.

Save setting time

Only need 7-8 minutes when change box sizes

No need to move cameras when change box sizes.

No stop working when change different size, because one F6 for presetting and another one can keep working, won't influence the production

Optional function:

Glue Viscosity Device : Automatic control hot melt glue thickness and add water automatically
Air Operated Double Diaphragm Pump: Applied in white glue pumping.
Local Language Operation System: Local language operation system avialable, including Russian,Turkish, Italian etc.

Paper feeder

Specifications of LS-450plus:

Type	LS-450B
Paper size (Max)	L800*W600mm
Paper size (Min)	L135*W100mm
Max box size	L430W350H100mm
Min box size	L80W65H15mm
Paper thickness	100-350g/㎡
Paper stacking height	280mm
Motor power / voltage	6.8kw/380v, 3 phase
Heating power	8kw/380v, 3 phase
Air supply	10L/min 0.6Mpa
Working speed	15-35 sheets/min
Machine dimension	L5980W3180H2100mm
Weight of machine	2100kg

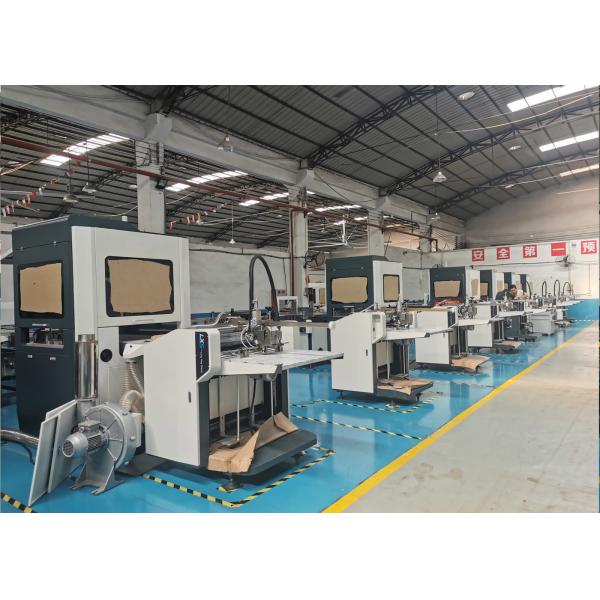

Company profile:

Rigid Box Visual Positioning Machine Gift Shoe Cell Phone Box

Our online-service:

We will create a Wechat group to provide online service during day and night, including the professional engineers inside. If machine has problem during the warranty time and not caused by wrong operation, buyer shall send video or pictures so that seller can figure out the exact problem. What‘s more, seller shall give technical support to buyer.
