    Cardboard Box Making Positioning Machine With Double Basler Cameras

    Ask Lasest Price
    Brand Name : Longxingsheng
    Model Number : LS-450Plus
    Certification : CE, ISO9001
    Price :
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 14 sets/month
    Delivery Time : 7-16 work days
    • Product Details
    • Company Profile

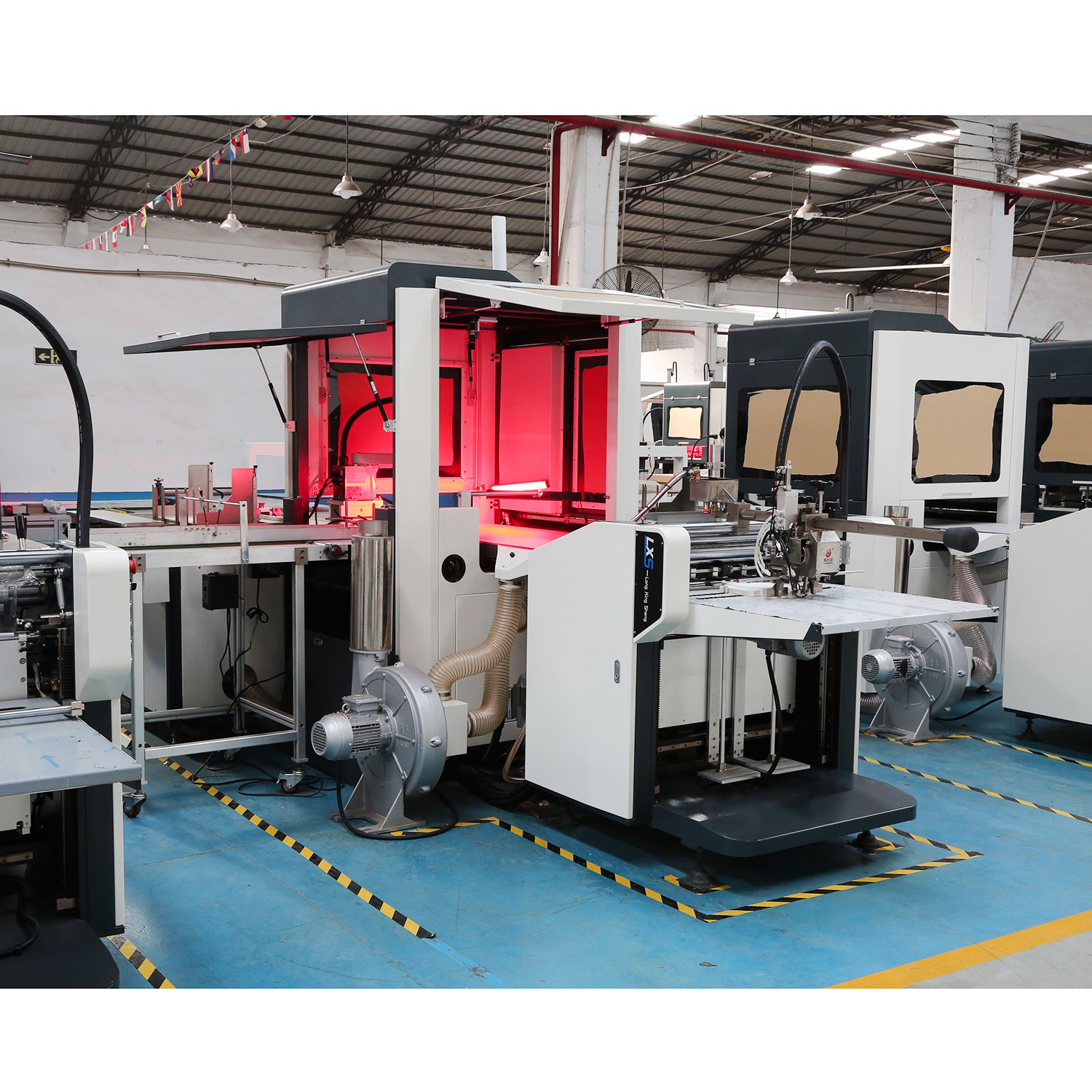

    Cardboard Box Making Positioning Machine With Double Basler Cameras


    Automatic Cardboard Box making Positioning Machine Paper Lining

    Main features

    1. High speed, Max speed is 45 pcs/min.
    2. Easy operation, the min setting time of change model is 7 minutes.
    3. No-move camera when change sizes.
    4. Double Germany Basler cameras (ten million pixels).
    5. Dual feeding system, one button change box feeding to hardcover feeding system.
    6. Anti-leaking gluing system.
    7. Panasonic Servo motor feeding system. 8. Storage function for the positioning part, easy to adjustment
    9. Yamaha Robotic arm.
    10. Box detecting system.
    Visual positioning machine is a core parts for rigid box production. It is widely applied since 2017. As the visual positioning has stable and high positioning accuracy than manual positioning. It has faster model changing speed than sensor positioning. The fastest setting time of visual positioning part is 7 minutes. Nowadays, the visual positioning has been applied in the production of rigid box, gift box, shoe box, cellphone box, cosmetic box, ring box, jewelry box, tea box etc. It is also able to positioning the hardcover, some customer able to using visual positioning for small case order.LS-450 Plus is a dual functional visual positioning machine. It is able to positioning the rigid box and hardcover. The working model able to change by one button. The visual positioning system is able to be upgrade. Whole line able to be upgraded to fully automatic line if need.
    Products Description

    Cardboard Box Making Positioning Machine With Double Basler Cameras


    Price vary with raw material cost, please contact our sales for latest prices.


    Machine model
    LS-450 Plus
    Paper size(max)
    L800*W600mm
    paper size (min)
    L150*W100mm
    Box length
    80-600mm
    Box width
    65-400mm
    Box height
    15-120mm
    Paper thickness
    100-350g/㎡
    Cardboard thickness
    0.5-3mm
    Working speed
    ≤45sheets/min
    Positioning accuracy
    ≤0.1mm
    Motor power
    7.5 kw/380v 3 phase
    Heating power
    8 kw
    Air pressure
    10L/min 0.6MPa
    Weight of machine
    2100kg
    Machine dimension
    L5980*W3180*H2100mm

    Company Profile

    Dongguan Longxingjian Intelligent Equipment Co.,Ltd


    We are located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd. We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery`s research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.
    We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.
