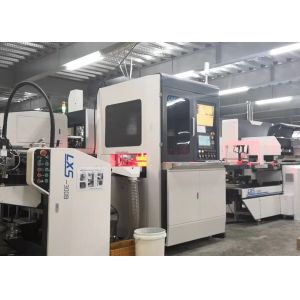

Full Automatic Visual Position Candies Mobile Phone Laptop Rigid Box Packaging Machine

Dongguan Longxingjian Intelligent Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Full Automatic Visual Position Candies Mobile Phone Laptop Rigid Box Packaging Machine from wholesalers

    Buy cheap Full Automatic Visual Position Candies Mobile Phone Laptop Rigid Box Packaging Machine from wholesalers
    • Buy cheap Full Automatic Visual Position Candies Mobile Phone Laptop Rigid Box Packaging Machine from wholesalers
    • Buy cheap Full Automatic Visual Position Candies Mobile Phone Laptop Rigid Box Packaging Machine from wholesalers
    • Buy cheap Full Automatic Visual Position Candies Mobile Phone Laptop Rigid Box Packaging Machine from wholesalers
    • Buy cheap Full Automatic Visual Position Candies Mobile Phone Laptop Rigid Box Packaging Machine from wholesalers

    Full Automatic Visual Position Candies Mobile Phone Laptop Rigid Box Packaging Machine

    Ask Lasest Price
    Brand Name : Longxingsheng
    Model Number : LS-300B
    Certification : CE, ISO9000
    Supply Ability : 10-20 set per month
    Delivery Time : 30-60 days
    • Product Details
    • Company Profile

    Full Automatic Visual Position Candies Mobile Phone Laptop Rigid Box Packaging Machine

    01:02
    01:29
    Product Description
    Full Automatic Visual Position Candies Mobile Phone Earphone Rigid Box Packaging Machine
    Product Name
    Automatic High Speed Rigid Box Making Machine LS-300B
    Material
    Stainless Steel
    Function
    High Speed & High Accuracy Positioning
    • Product performance description

    • *High Speed, Suitable for big orders.especially for the orders which are more than 50,000 pcs at one time for the same size,because one line can make around 14000 pcs/ day. Better service for long-term and stable orders



    Working range of LS-300B
    Product Parameters
    Box size(max)
    400*300*100 mm
    Box size(min)
    80*60*15 mm
    Working speed
    15-35 Pcs/min
    Paper size(max)
    800*600 mm
    Paper size(min)
    135*100 mm
    Cardboard size(max)
    760*560 mm
    Cardboard size(min)
    120*100 mm
    Motor power
    8 kw
    Heating power
    14kw/380 3phase
    Paper stacking height
    450mm/100kg
    Machine weight
    5100 kg
    Machine dimension
    6600*3800*3000 mm
    Quickly job setting .
    No need to change air pressing plate .
    No need to change tuck in blade .
    No need to move camera for size changing, quick job changing
    Storage(memory) function for sizes setting
    Details Images
    .Whole machine require working in stable working environment.
    *Mitsubishi servo motor .
    *.Panasonic PLC
    *. Servo motor feeding system
    *.Anti-leaking gluing system
    *.Storage function for the positioning part, easy to adjustment.
    *.YAMAHA Robotic arm
    *.Double Germany cameras (1000 pixels)
    *Second pressing device
    Box forming parts
    Our Advantages
    Our Products are built with very strong materials and high configuration, even under high- speed running, machine will not shake. this is a suitable machine for all kinds of rigid boxes, it is an ideal solution for both long run and short run orders because of the easy setting and big size range.
    Company Introduction
    DONGGUAN LONGXINGSHENG MACHINERY CO.,LTD
    Longxingsheng machinery is a professional packaging machinery manufacturer with 16 years’ experience, we focus on Fully automatic rigid box making machine and rigid box related equipment such as grooving machine, corner pasting machine and positioning machine,our company vision of all time is to simplify box making, we apply our newest technology in building user- friendly machines, we simplify each step of setting in our equipment, just to provide stable and easy-operating machinery solutions to our users around the world.We have built good and long-term cooperation with several world-famous companies. Our market has been expanded all over the world.
    Out Services
    Pre-sale service.
    * Inquiry and consulting support.
    * Sample testing support.
    * Factory visit.
    * Order confirmation.
    After-sale service.
    * Machine installation and training in customer factory.
    * Engineers available to service machinery overseas.
    * On-line technology support.
    * Free machine parts replacement during warranty.
    * Whole life of machine service.
    Packing&Shipping
    FAQ
    1.What is LXS company machine warranty?
    ----1 year warranty including free machine parts replacement ( consumables are notincluded).

    2.Does your machine with CE certificate?
    ----Yes.We have CE ,ISO9001 .

    3.What is the production time while placing order?
    ---- Within 7-30 workdays.

    4.Do you have stock product to sell?
    ----Normally we do,it depends on which models you inquired .
